SAYES® 310 SERIES FILTER CARTRIDGES
SAYES® 310 SERIES FILTER CARTRIDGES
designed for providing consistent higher flow rates and longer service life, enabling stable process conditions. It remains robust and durable in highly corrosive acids,bases, and organic compounds. Manufactured in a clean room under ISO 9001 Quality Systems Standard.
SAYES® 310 SERIES FILTER CARTRIDGES
designed for providing consistent higher flow rates and longer service life, enabling stable process conditions. It remains robust and durable in highly corrosive acids,bases, and organic compounds. Manufactured in a clean room under ISO 9001 Quality Systems Standard.
● Very high flow rates
● Low pressure drop
● High sieving retention at reted pore size
● Optimized for acid-based applications to minimize filter inventory in wet process operations
● Excellent performance with common solvents
● Wide range of retention ratings covers a broad scope of process requirements
Product Specifications
Retention Ratings:
PES : 0.1, 0.22, 0.45, 0.65, 0.8, 1.2μm
PP Nominal: 0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10. 20, 25, 30, 50, 70um
PP Absoluter: 0.6, 1.2, 2.5, 4.5, 6.0, 10, 20, 40, 70
PTFE: 1um,3um,10um
Maximum Differential Pressure:
70psid @ 68℉ (4.8bar @ 20℃)
36psid @ 150℉ (2.5bar @ 65℃)
Recommended Change out Differential Pressure: 35psid (2. 0 bar)
Purity:
310 Series filter cartridges are free of surfactants, anti-static agents, binders, and adhesives.
Sterilization:
Multiple autoclaving for 30 minutes at 121℃ under no end load conditions.
Materials of Construction:
Filter Media: Pleated Polypropylene , PES Membrane, PTFE Membrane
Endcaps: Polypropylene
Extended Core*: Polypropylene
Gaskets/O-rings*: Silicone, Buna N, Viton A, EPDM, T = PTFE

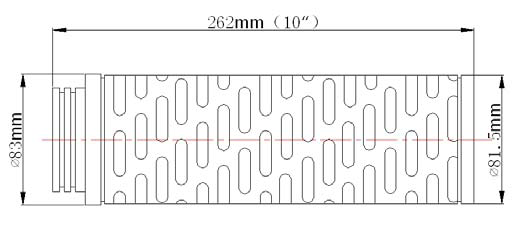

Dimensions (nominal):
Outside Diameter: 3-1/4in (83mm)
Inside Diameter: 1-1/4in (33mm)
Lengths: 10” (262 mm),
Applications
● D.I water ● Optical Disks ● Acids ● Semiconductor
● Bases ● Printed Circuits ● Alkalies ● Feed-in water
