SAYES® FILTER HOUSINGS
SAYES® FILTER HOUSINGS

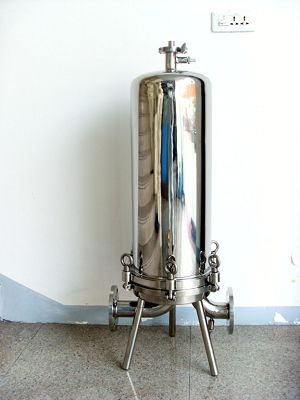

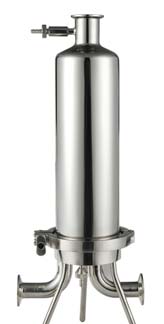

SAYES® MICRO-FILTRATION HOUSING

Ordering Information
H - 12 - 40 – C3 - G - E

Length of Cartridges
10,20,30,40inch

Gasket/O-ring Materials:
S = Silicone
V = Viton A
N = Buna N
E = EPDM (standard)

Number of Columns:
1,3,5,7,9,
12,15,16,21,24,32,48,72
Micro-Filtration Housing

Configuration of Cartridges
C3: 2-222Oring/flat
C8: 2-222Oring/fin
C2: 2-226Oring/flat
C7: 2-226Oring/fin
D: Double Open End

Material of Housing
G: SUS304 Stainless Steel
K: SUS316 Stainless Steel
Accepts SAYES CODE3 Style 222 O-ring Single Open End Cartridges
• Positive Cartridge Sealing Eliminates Fluid Bypass
• Accepts 10”, 20”, 30”, or 40” Code3 Style Cartridges
• Unique Housing Design Has No Internal Parts
• Design Permits Visual Inspection of Cartridge Seal Prior to Closing Housing
• Optional Tri-Clamp Bracket Allows Easy Cartridge Replacement

Housing Specifications

Maximum Operating Pressure:
0.8Mpa @ 68° F (20° C)
NOTE: Maximum operating pressure ratings are vessel ratings only. Safe operating temperature and
pressure will depend on filter cartridge and gasket use.

Construction:
Head: SUS304 or 316L Stainless Steel
Shell: SUS304 or 316L Stainless Steel

Connections:
As per custmer’s request( NPT/Flange and so on)
Shell O-rings:
Standard: EPDM
Optional: Neoprene, Fluoropolymer, Silicone, Buna N, Viton A
